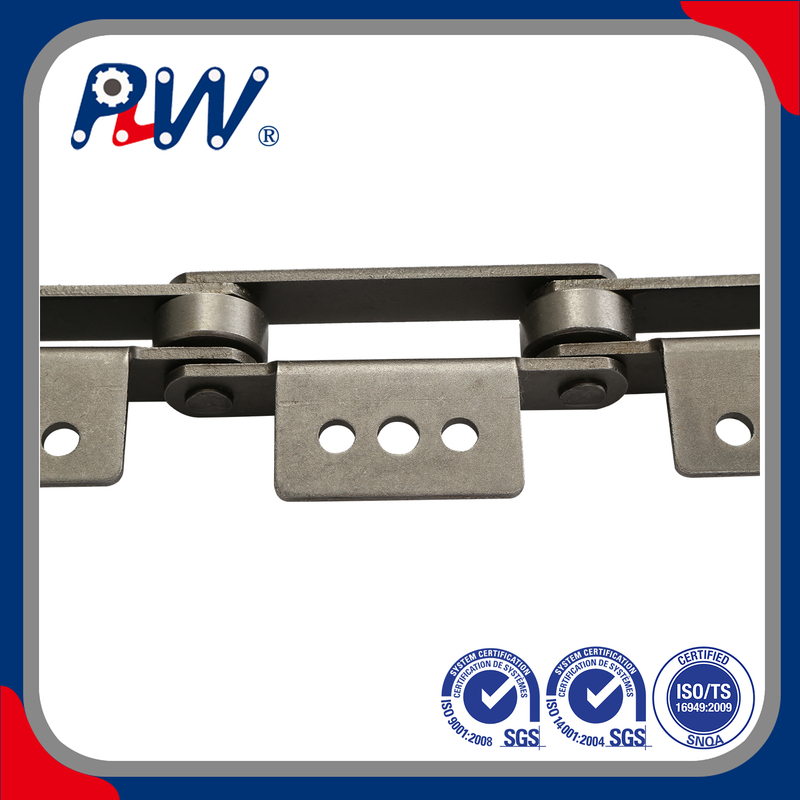

Conveyor Chains With Attachments（Z Series）
Z-belt attachment conveyor chain is a variant of Z-type conveyor, which is based on the traditional Z-type conveyor and enhances the functionality and adaptability of the conveyor chain by adding various accessories such as vibrators, baffles, metering devices, etc. This conveyor forms a Z-shaped conveying path through the combination of chains and chain plates, so as to adapt to space constraints or realize multi-directional conveying of materials.
Conveyor chains with accessories (Z series) are widely used in various conveying systems, such as Z-type chain bucket conveyor, Z-type elevator conveyor network chain, etc. They can be used for loading and loading, stacking loose and lumpy materials (such as gravel, mineral gravel, coal, fertilizer, grain, etc.), and are also suitable for assembly lines such as electronic instrument assembly and food packaging. They can also be found in workplaces such as construction sites, mines, factories, warehouses, quarries, stations, docks, etc.
| CHAIN NO. | P | L | G | d | d4 | F | W | h4 | |
| Cadena No | mm | mm | mm | mm | mm | mm | mm | mm | |
| Z40 | Δ | 50.8 | - | 45.0 | 10.7 | 9.3 | 38.1 | 64.5 | 19.0 |
| Δ☆ | 63.5 | 22.2 | 43.0 | 56.0 | |||||
| Δ☆ | 76.2 | 68.0 | |||||||
| ▲ | 88.9 | 31.8 | 50.0 | 56.0 | |||||
| ▲ | 101.6 | 64.0 | 55.0 | ||||||
| ▲ | 127.0 | 57.2 | 84.0 | 56.0 | |||||
| ▲ | 152.4 | ||||||||
| Z100 | Δ | 76.2 | - | 30.0 | 14.0 | 10.5 | 44.5 | 65.0 | 32.0 |
| Δ | 88.9 | ||||||||
| ▲ | 101.6 | 31.8 | 64.0 | ||||||
| Δ☆ | 127.0 | 57.2 | 84.0 | ||||||
| ▲ | 152.4 | 114.5 | |||||||
| Δ☆ | 177.8 | 80.0 | 110.0 | ||||||
| Δ☆ | 203.2 | ||||||||
| Z160 | Δ | 101.6 | - | 35.0 | 15.5 | 12.3 | 54.0 | 77.0 | 38.0 |
| Δ☆ | 127.0 | 31.7 | 56.0 | ||||||
| Δ☆ | 152.4 | 57.2 | 84.0 | ||||||
| Δ☆ | 177.8 | ||||||||
| Δ☆ | 203.2 | 100.0 | 130.0 | ||||||
| Δ☆ | 228.6 | 150.0 | |||||||
| Δ☆ | 254.0 | 135.0 | 170.0 | ||||||
| Z300 | Δ | 152.4 | 38.1 | 70.0 | 17.0 | 14.0 | 73.0 | 100.0 | 51.0 |
| Δ | 177.8 | ||||||||
| Δ☆ | 203.2 | 76.2 | 100.0 | ||||||
| Δ☆ | 254.0 | 90.0 | 152.4 | ||||||
| Δ☆ | 304.8 | 190.0 | 225.0 | ||||||
ΔAttachments with 1 hole ☆Attachments with 2 hole ▲Attachments with 3 hole
Δaccesorio con un agujero ☆accesorio con dos agujeros ▲accesorio con tres agujeros
