STAINLESS STEEL HOLLOW PIN CHAINS

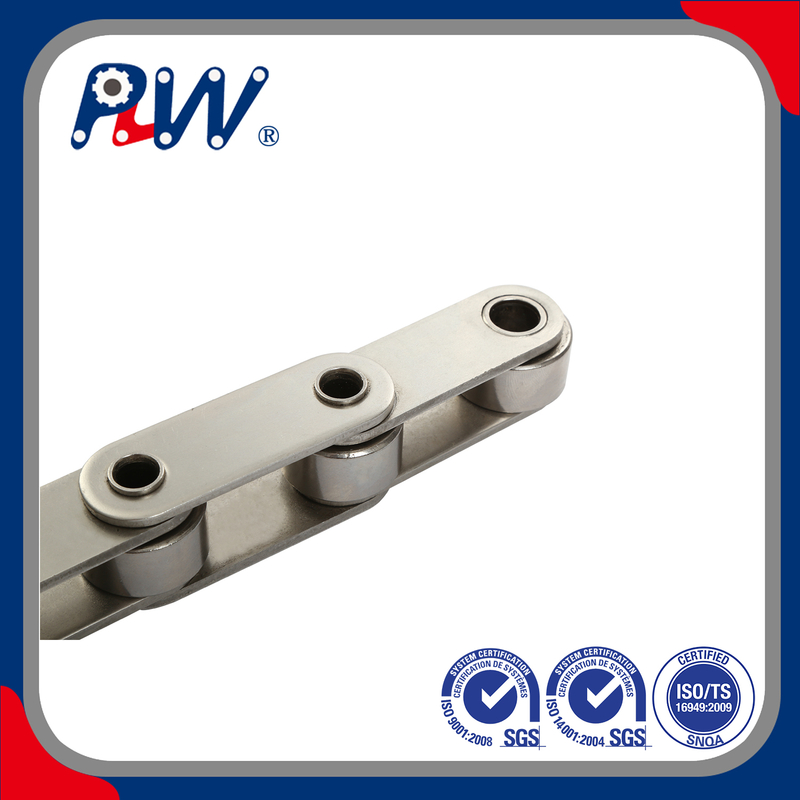

The structure of the stainless steel hollow pin chain is basically the same as that of similar carbon steel chains, but the pin shaft part is designed to be hollow, which helps to reduce the overall weight of the chain, while maintaining sufficient strength and stiffness.
stainless steel hollow pin chain is widely used in metallurgy, food processing, high temperature or low temperature equipment manufacturing, sewage treatment and other industries. In these industries, the chain needs to withstand all kinds of harsh working conditions, and the stainless steel hollow pin chain meets these needs with its excellent performance.
Application：
Stainless steel hollow pin chain is widely used in metallurgy, food processing, high or low temperature equipment manufacturing, sewage treatment and other industries. In the metallurgical industry, it can be used for various transmission devices; In the food processing industry, it can be used for food delivery and processing on conveyor belts; In the sewage treatment industry, it can be used to transport and treat solid substances in sewage.
| CHAIN NO. | Pitch | Bush diameter | Width between inner plates | Pin diameter | Pin length | Inner Plate depth | Plate thickness | load | Weight per meter | Type | ||
| Cadena No | Paso | Diámetro casquillo | Ancho interior | Diámetro pasador | Longitud pasador | Altura placas | Ancho placas | Carga rotura | Peso por metro | Tipo | ||
| P | d1 max | bt min | d2 max | d3 min | L max | Lc max | h2 max | t/T max | min | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/LB | kg/m | ||
| 08BHPFSS | 12.700 | 8.51 | 7.75 | 6.55 | 4.50 | 16.4 | 17.6 | 11.80 | 1.6/1.3 | 7.8/1773 | 0.57 | A |
| 40HPSS | 12.700 | 7.95 | 7.85 | 5.63 | 4.00 | 16.5 | 17.6 | 12.00 | 1.50 | 7.7/1750 | 0.55 | A |
| 50HPSS | 15.875 | 10.16 | 9.40 | 7.03 | 5.13 | 20.7 | 21.9 | 15.09 | 2.03 | 14.0/3182 | 0.92 | A |
| 60HPSS | 19.050 | 11.91 | 12.70 | 8.31 | 6.00 | 25.8 | 26.8 | 18.00 | 2.42 | 16.8/3818 | 1.31 | A |
| *12BHPSS | 19.050 | 12.07 | 11.68 | 6.50 | 4.00 | 21.6 | 22.8 | 15.90 | 1.85 | 16.5/3750 | 1.10 | A |
| 80HPSS | 25.400 | 15.88 | 15.75 | 11.40 | 8.05 | 32.5 | 33.8 | 24.00 | 3.25 | 35.0/7955 | 2.29 | A |
| C2040HPSS | 25.400 | 7.95 | 7.85 | 5.63 | 4.00 | 16.5 | 17.6 | 12.00 | 1.50 | 7.7/1750 | 0.47 | B |
| C2050HPSS | 31.750 | 10.16 | 9.40 | 7.22 | 5.12 | 20.5 | 21.8 | 15.00 | 2.03 | 14.3/3250 | 0.77 | B |
| C2060HPSS | 38.100 | 11.91 | 12.70 | 8.31 | 6.00 | 25.8 | 26.8 | 17.00 | 2.42 | 16.8/3818 | 1.03 | B |
| C2080HPSS | 50.800 | 15.88 | 15.75 | 11.40 | 8.05 | 32.5 | 33.8 | 24.00 | 3.25 | 35.0/7955 | 1.83 | B |
| *HB50.8SS | 50.800 | 30.00 | 10.50 | 11.40 | 8.20 | 27.4 | 28.6 | 26.00 | 3.10 | 35.0/7955 | 2.60 | A |
| CHAIN NO. | Pitch | Roller diameter | Width between | Pin diameter | Pin length | Inner Plate depth | Plate thickness | Breaking | Weight per meter | ||
| Cadena No | Paso | Diámetro rodillo | Ancho interior | Diámetro pasador | Longitud pasador | Altura placas | Ancho placas | Carga rotura | Peso por metro | ||
| P | d1 max | b1 min | d2 max | d3 min | L max | Lc max | h2 max | T max | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/LB | kg/m | |
| C2042HPSS | 25.40 | 15.88 | 7.85 | 5.63 | 4.00 | 16.5 | 17.6 | 12.0 | 1.50 | 7.7/1750 | 0.79 |
| C2052HPSS | 31.75 | 19.05 | 9.53 | 7.22 | 5.12 | 20.5 | 21.8 | 15.0 | 2.03 | 14.3/3250 | 1.27 |
| C2062HPSS | 38.10 | 22.23 | 12.70 | 8.31 | 6.00 | 25.8 | 26.8 | 17.0 | 2.42 | 16.8/3818 | 1.74 |
| C2082HPSS | 50.80 | 28.58 | 15.75 | 11.40 | 8.05 | 32.4 | 33.8 | 24.0 | 3.25 | 35.0/7955 | 2.86 |
| C2042H-HPSS | 25.40 | 15.88 | 7.85 | 5.63 | 4.00 | 18.8 | 19.9 | 12.0 | 2.03 | 7.7/1750 | 0.96 |
| C2052H-HPSS | 31.75 | 19.05 | 9.53 | 7.22 | 5.12 | 22.1 | 23.4 | 15.0 | 2.42 | 14.3/3250 | 1.46 |
| C2062H-HPSS | 38.10 | 22.23 | 12.70 | 8.31 | 6.00 | 29.2 | 30.2 | 17.0 | 3.25 | 16.8/3818 | 2.02 |
| C2082H-HPSS | 50.80 | 28.58 | 15.75 | 11.40 | 8.05 | 36.2 | 37.6 | 24.0 | 4.00 | 35.0/7955 | 3.30 |
