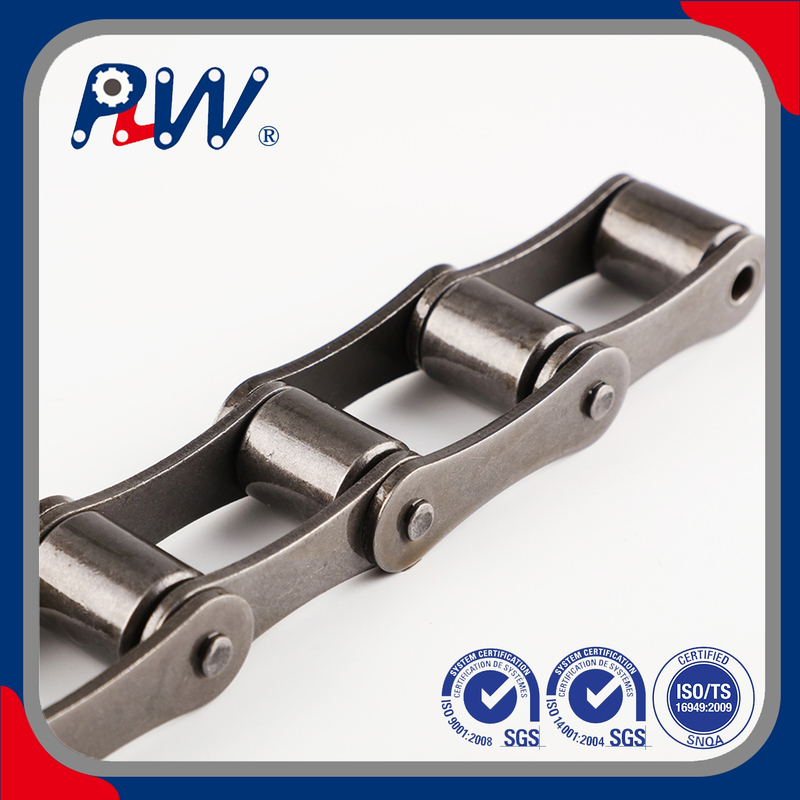

A TYPE STEEL AGRICULTURAL CHAINS
A-type steel agricultural chain is A transmission chain specially designed for agricultural machinery that meets the American chain standard, which has the characteristics of high strength, wear resistance and corrosion resistance. It is usually used in various agricultural machinery and equipment, such as harvesters, tractors, rice transplanters, etc., to achieve the efficient transmission of power.
Application：
A-type steel agricultural chain is widely used in various agricultural machinery and equipment, such as combine harvester, rice transplanter, tractor and so on. It is mainly used to transmit power and movement and realize the mechanization of agricultural production.
| CHAIN NO. | Pitch | Roller diameter | Width between | Pin diameter | Pin length | Plate dimension | Ultimate tensile strength | Average tensile strength | Weight per meter | ||
| Cadena No | Paso | Diámetro rodillo | Ancho interior | Diámetro pasador | Longitud pasador | Dimensiones de las placas | Resis. rotura | Resis. media tracción | Peso por metro | ||
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | Q min | Qp | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | KN/LB | KN | kg/m | |
| A550 | 41.40 | 16.87 | 19.81 | 7.19 | 35.0 | 38.0 | 19.3 | 2.80 | 39.10/8886 | 51.2 | 1.79 |
| A555 | 41.40 | 16.87 | 12.70 | 7.19 | 29.1 | 32.0 | 19.3 | 3.10 | 39.10/8886 | 56.0 | 1.60 |
| A557 | 41.40 | 17.78 | 20.24 | 8.00 | 37.4 | 40.6 | 23.1 | 3.10 | 55.61/12639 | 74.3 | 2.45 |
| A620 | 42.01 | 17.91 | 24.51 | 7.19 | 41.8 | 45.2 | 20.2 | 3.25 | 39.10/8886 | 55.1 | 2.18 |
