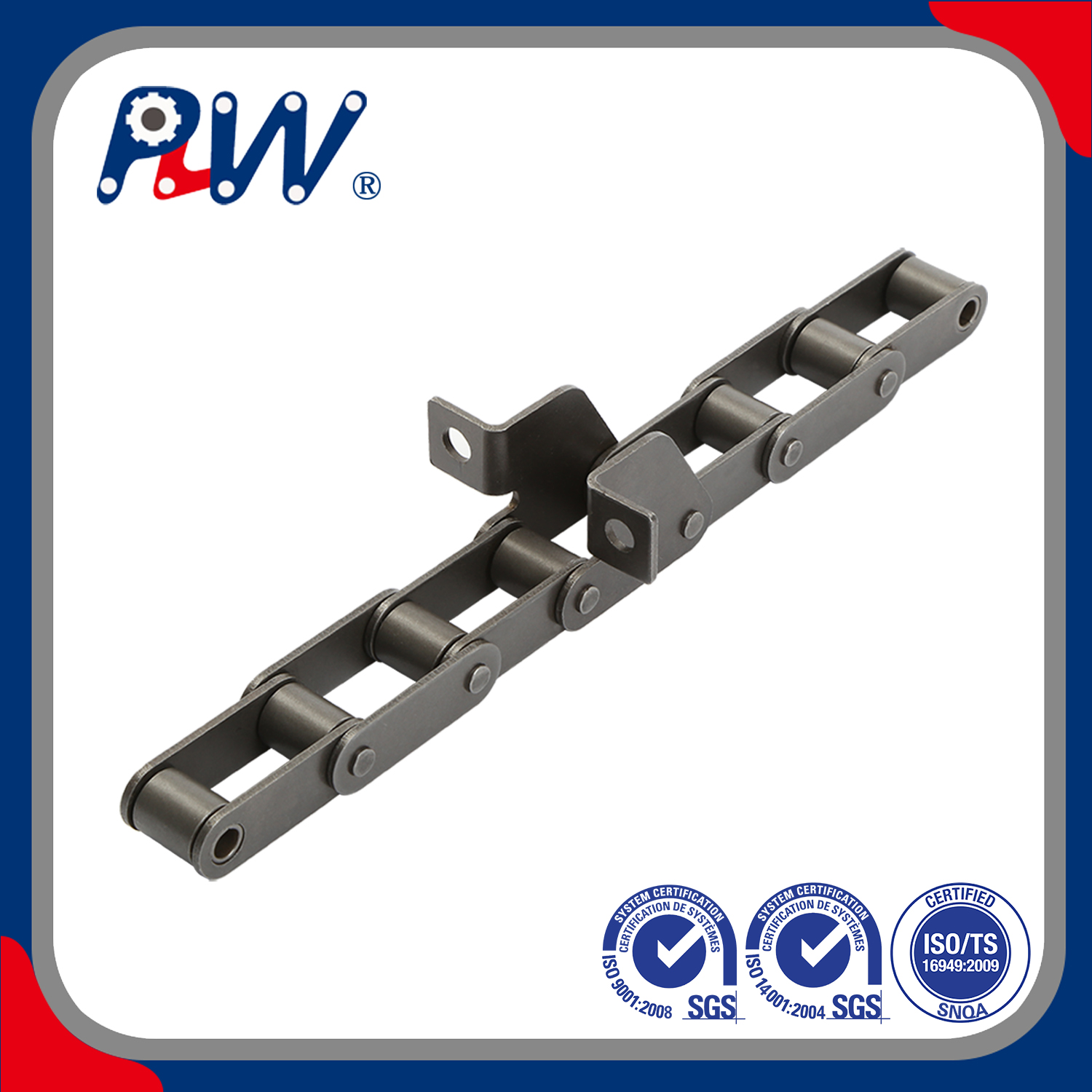

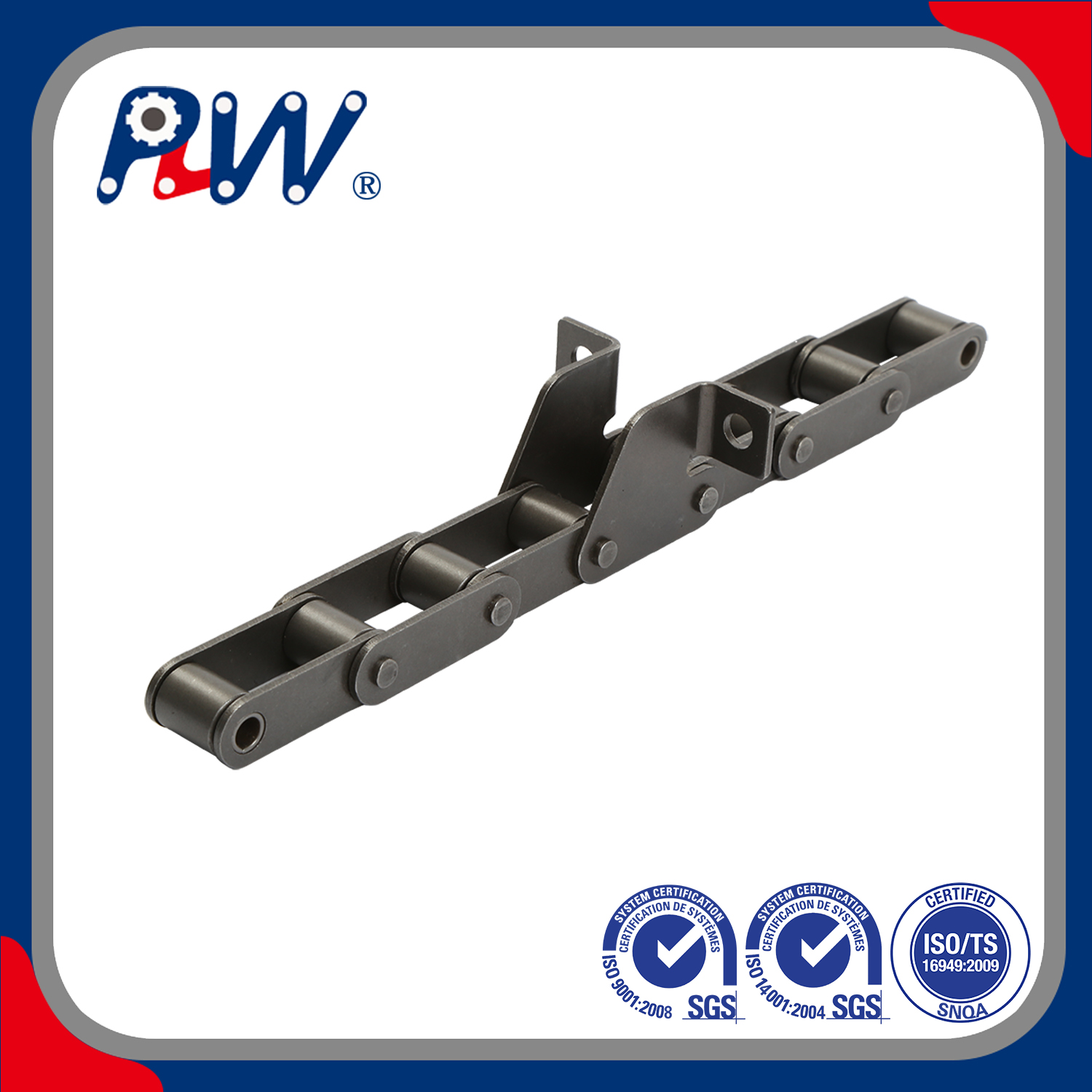

S TYPE STEEL AGRICULTURAL CHAIN WITH ATTACHMENTS-S32SD
The shaped steel agricultural chain with accessories is a transmission component specially designed for agricultural machinery and equipment, which has the characteristics of high strength, wear resistance, corrosion resistance, etc., and can adapt to various complex agricultural operating environments
The chain is equipped with various accessories, such as connecting plates, pins, rollers, etc. These accessories are designed to make the chain more stable and reliable in the transmission process, but also easy to install and maintain
Application：
Steel agricultural chain with accessories is widely used in various agricultural machinery and equipment, such as rice, wheat, corn, cotton and other crops of arable land, sowing, harvesting and other mechanized operation process. They provide driving and conveying functions for agricultural machinery and equipment, and realize the mechanization of the whole process of agricultural production from ploughing to harvesting.
| CHAIN NO. | P | b1 | C | E | F | W | d4 | h2 |
| Cadena No | mm | mm | mm | mm | mm | mm | mm | mm |
| S32SD | 29.21 | 15.88 | 20.0 | 19.2 | 58.0 | 78.0 | 6.4 | 13.2 |
| S45W-F1 | 41.40 | 22.23 | 20.0 | 37.0 | 58.0 | 87.0 | 6.6 | 17.3 |
| S45W-F4 | 41.40 | 22.23 | 20.5 | 33.2 | 58.0 | 85.6 | 6.6 | 17.3 |
| S45F1 | 41.40 | 22.23 | 21.0 | 25.0 | 62.4 | 83.4 | 8.5 | 17.3 |
| S45SDF2 | 41.40 | 22.23 | 21.0 | 28.5 | 62.4 | 83.4 | 8.5 | 17.3 |
| S52SD | 38.10 | 22.23 | 20.0 | 19.2 | 62.0 | 88.5 | 6.4 | 17.3 |
| S52F4 | 38.10 | 15.80 | 20.6 | 37.0 | 53.8 | 69.5 | 6.4 | 16.7 |
| S52F8 | 38.10 | 22.23 | 20.6 | 37.0 | 60.7 | 76.4 | 6.4 | 17.3 |
| S52F9 | 38.10 | 18.50 | 20.0 | 18.5 | 54.5 | 71.0 | 6.5 | 16.5 |
| S52LSD | 38.10 | 16.40 | 20.0 | 17.5 | 54.5 | 71.0 | 6.5 | 16.5 |
| S52LF2SD | 38.10 | 16.00 | 20.0 | 19.0 | 54.6 | 76.6 | 6.5 | 17.0 |
| S52F12SD | 38.10 | 13.00 | 20.0 | 30.0 | 47.5 | 83.4 | 6.4 | 17.3 |
| S52SDF2 | 38.10 | 22.20 | 20.2 | 37.2 | 57.6 | 86.2 | 6.5 | 16.4 |
| S55F2 | 41.40 | 22.23 | 20.0 | 37.0 | 58.0 | 87.0 | 6.4 | 17.3 |
| S55F3 | 41.40 | 22.23 | 20.5 | 33.2 | 58.0 | 85.6 | 6.6 | 17.3 |
| S55F4 | 41.40 | 22.23 | 20.0 | 37.0 | 58.0 | 87.0 | 6.6 | 17.3 |
| S55F6 | 41.40 | 22.23 | 20.0 | 30.0 | 58.0 | 87.0 | 6.4 | 17.3 |
| S55F7 | 41.40 | 22.23 | 20.5 | 33.2 | 62.0 | 85.6 | 6.6 | 17.3 |
| 55VSDF2 | 41.40 | 22.23 | 20.5 | 33.2 | 62.0 | 85.6 | 8.3 | 20.0 |
| 55VSDF1 | 41.40 | 22.23 | 20.5 | 33.2 | 62.0 | 85.6 | 6.6 | 20.0 |
| S55RSDF1 | 41.40 | 22.23 | 20.5 | 33.2 | 62.0 | 85.6 | 6.6 | 22.4 |
| S55SDF2 | 41.40 | 22.20 | 20.0 | 33.4 | 58.0 | 86.0 | 6.6 | 17.3 |
| S62SD | 41.91 | 26.20 | 20.0 | 32.6 | 61.4 | 92.0 | 6.4 | 17.3 |
